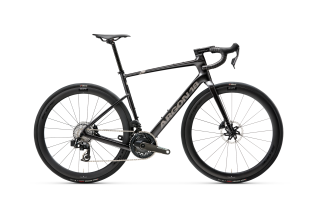

Krypton

SRAM Force AXS

Be the first to review this product
$6,500
Iridescent Charcoal, Gloss
Frostbite Blue, Gloss
Rainbow Grey
Find your size

All images on this page are used for illustrative purposes only. Actual bike specifications may vary depending on country and assembly options available. Please refer to the Features and Configurations section below for options available in your region.

SRAM Force AXS Components

Frameset
Frame
Krypton
Fork
Krypton
Headset
FSA Headset NO.55R 1.5'' + 3D
Integrated Cables
Yes
Storage Optimization System Length chart
Yes
Wheels
Wheels
Scope R4.A
Tires
Vittoria Corsa N.EXT 32-622 TLR, black G2.0
Tire Clearance
40c (43mm)
Group
Bottom Bracket
TOKEN DUB T47
Front Derailleur
SRAM Force AXS
Rear Derailleur
SRAM Force AXS
Crankset Length chart
SRAM Force DUB 48/35
Chain
SRAM FORCE 12S
Cassette
SRAM XG 1270 10-36
Brakes
Brakes
SRAM Force AXS
Brake Levers
SRAM Force AXS
Rotors
SRAM Centerlock Centerline XR / F:160mm R:140mm
Shifters
SRAM Force AXS
Other Components
Handlebar Width chart
FSA Energy SCR Compact
Stem Length chart
FSA SMR
Bar Tape
Ciclovation LEATHER TOUCH Tornado Gloss
Saddle
Repente Quasar S 2.0
Seatpost
Argon 18 TDS-C
Included with bike
Toolkit
No

Geometry and fit

Geometry

XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
42.0
B
Seat tube angle
deg
75.5
C
Head Tube Angle
deg
70.6
D
Top tube length
cm
49.6
E
Chain stay length
cm
41.5
F
Wheelbase
cm
97.5
G
BB Drop
cm
8.0
H1
Head Tube Length 3D (0mm)
cm
10.6
H2
Head Tube Length 3D (25mm)
cm
13.1
I
Stand Over Height
cm
67.5

Fit (Stack and Reach)

XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Stack
cm
52.3
J
Stack 3D (25mm)
cm
54.7
K
Reach
cm
35.7
K
Reach 3D (25mm)
cm
34.9
Saddle Height Min
cm
59.0
Saddle Height Max
cm
74.0
