All images on this page are used for illustrative purposes only. Actual bike specifications may vary depending on country and assembly options available. Please refer to the Features and Configurations section below for options available in your region.
Dark Matter
SRAM Force XPLR AXS
$6,650
Terracotta
Find your size
All images on this page are used for illustrative purposes only. Actual bike specifications may vary depending on country and assembly options available. Please refer to the Features and Configurations section below for options available in your region.
SRAM Force XPLR AXS Components
Frameset
Frame
Dark Matter
Fork
Dark Matter
Integrated Cables
Yes
Storage Optimization System
Length chart
Yes
Wheels
Wheels

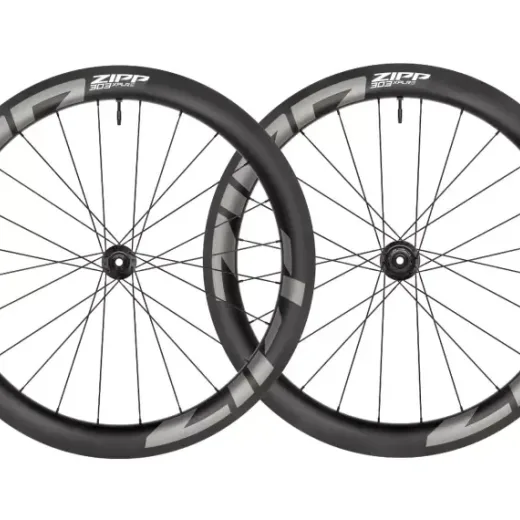

ZIPP 303 XPLR S
Tires

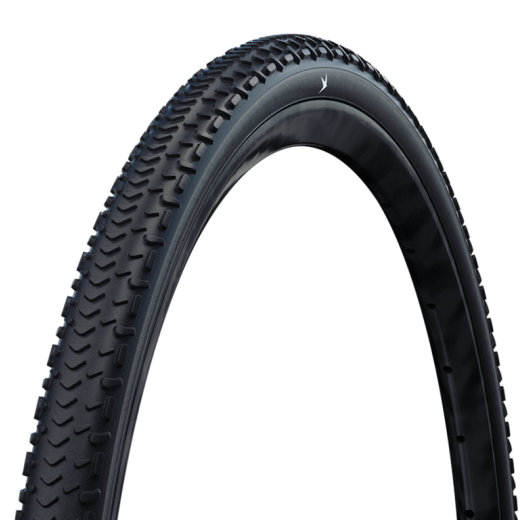

Schwalbe G-One RX PRO, TLR 700x50c
Tire Clearance
57mm
Group
Bottom Bracket
SRAM BB DUB T47 Wide
Front Derailleur
N/A
Rear Derailleur
SRAM Force XPLR AXS
Crankset
Length chart
SRAM Force 1 Wide DUB 40T
Chain
SRAM Force Flattop
Cassette
SRAM XG 1271 10-44
Brakes
Brakes
SRAM Force AXS
Brake Levers
SRAM Force AXS
Rotors
SRAM Centerlock Centerline XR / F:160mm R:160mm
Shifters
SRAM Force AXS
Other Components
Handlebar
Width chart
FSA A-Wing Pro AGX
Stem
Length chart
FSA SMR-II
Bar Tape
Ciclovation Grind Touch
Saddle
Repente Quasar S 2.0
Seatpost
Argon 18 TDS-C
Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
42.0
43.5
46.0
49.5
54.0
58.5
B
Seat tube angle
deg
75.5
74.9
74.3
73.7
73.1
72.5
C
Head Tube Angle
deg
68.5
70.0
70.5
71.0
71.0
71.0
D
Top tube length
cm
50.7
53.0
55.3
57.7
60.2
62.9
E
Chain stay length
cm
43.6
43.6
43.6
43.6
43.6
43.6
F
Wheelbase
cm
103.0
103.6
104.5
105.9
108.0
110.1
G
BB Drop
cm
8.0
8.0
7.8
7.8
7.6
7.6
H1
Head Tube Length 3D (0mm)
cm
7.2
8.7
10.6
12.6
15.1
17.8
H2
Head Tube Length 3D (35mm)
cm
9,5
11.2
13.1
15.1
17.6
20.3
I
Stand Over Height
cm
71.3
72.9
75.5
78.6
82.5
86.3
L
Fork Length (Axle-to-crown)
cm
425.0
425.0
425.0
425.0
425.0
425.0
R
Fork Rake
cm
54.0
54.0
48.0
48.0
48.0
48.0
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Stack min
cm
52.0
54.0
56.1
58.2
60.3
62.9
J
Stack max with 3D (35mm)
cm
54.3
56.4
58.5
60.6
62.7
65.3
K
Reach
cm
37.0
38.2
39.4
40.6
41.8
43.0
K
Reach 3D (35mm)
cm
36.1
37.3
38.6
39.8
41.0
42.2
Saddle Height Min
cm
59.0
60,5
63.0
66,5
71.0
75,5
Saddle Height Max
cm
79.0
80,5
83.0
86,5
91.0
95,5
