All images on this page are used for illustrative purposes only. Actual bike specifications may vary depending on country and assembly options available. Please refer to the Features and Configurations section below for options available in your region.

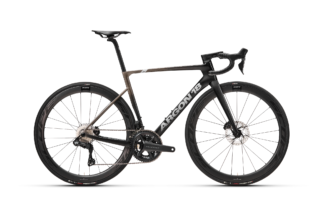

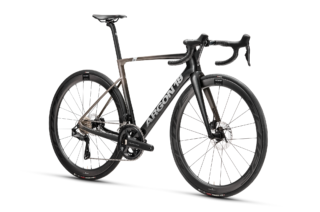

Sum
Shimano Ultegra Di2
$6,000
Smoked Nickel
British Racing Green
Find your size
All images on this page are used for illustrative purposes only. Actual bike specifications may vary depending on country and assembly options available. Please refer to the Features and Configurations section below for options available in your region.
Shimano Ultegra Di2 Components
Frameset
Frame
SUM
Fork
SUM specific
Headset
FSA Headset NO.55R 1.5'' + 3D
Integrated Cables
Yes
Wheels
Wheels
Scope R4
Tires
Vittoria Corsa N.EXT TLR 28mm
Tire Clearance
30C (32mm)
Group
Bottom Bracket
BB Ultegra SM-BB72
Front Derailleur
Shimano Ultegra Di2 R8150
Rear Derailleur
Shimano Ultegra Di2 R8150
Crankset
Length chart
Shimano Ultegra R8100 52/36
Chain
Shimano Ultegra CN-M8100 12S
Cassette
Shimano Ultegra CS-R8100 11-30
Brakes
Brakes
Shimano Ultegra Di2 R8170
Rotors
Shimano Ultegra RT-CL800 / F:160mm R:140mm
Shifters
Shimano Ultegra Di2 R8170
Other Components
Handlebar
Width chart
FSA Energy SCR Compact
Stem
Length chart
FSA SMR-II
Bar Tape
Ciclovation LEATHER TOUCH Tornado Gloss
Saddle
Repente Quasar
Seatpost
SUM specific
Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
39.5
42.5
46.0
50.5
55.0
59.5
B
Seat tube angle
deg
75.0
74.5
74.0
73.5
73.0
72.5
C
Head Tube Angle
deg
71.2
72.1
72.7
72.7
72.7
73.0
D
Top tube length
cm
50.3
52.0
53.8
55.7
57.8
60.0
E
Chain stay length
cm
41.0
41.0
41.0
41.0
41.0
41.0
F
Wheelbase
cm
96.7
97.2
97.5
99.0
100.6
102.0
G
BB Drop
cm
6.9
7.3
7.7
7.7
7.7
7.7
H1
Head Tube Length 3D (0mm)
cm
6.9
8.5
10.1
12.6
15.2
18.0
H2
Head Tube Length 3D (15mm)
cm
8.4
10.0
11.6
14.1
16.7
19.5
H3
Head Tube Length 3D (25mm)
cm
9.4
11.0
12.6
15.1
17.7
20.5
I
Stand Over Height
cm
67.6
70.0
72.7
76.6
80.4
84.1
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Stack 3D (0mm)
cm
47.1
49.3
51.6
54.0
56.5
59.2
J
Stack 3D (15mm)
cm
48.5
50.7
53.0
55.4
57.9
60.6
J
Stack 3D (25mm)
cm
49.5
51.7
54.0
56.4
58.9
61.6
K
Reach 3D (0mm)
cm
37.5
38.2
38.9
39.7
40.5
41.4
K
Reach 3D (15mm)
cm
37.0
37.7
38.5
39.3
40.1
41.0
K
Reach 3D (25mm)
cm
36.7
37.4
38.2
39.0
39.8
40.7
Saddle Height Min
cm
56.5
59.5
63.0
67.5
72.0
76.5
Saddle Height Max
cm
71.5
74.5
78.0
82.5
87.0
91.5
